WF 1-4 Lamp Medium-Pressure UV Systems
- The world’s most compact medium-pressure UV system
- Type approved by the Veterinary Institute
- Optimized hydraulic performance for increased power
- Minimal pressure loss
- Unique TWISTLOK™ lamp design
- Operating time lamps within dose requirements 9,000 hours
- Manual or automatic wipers
- External CIP facility (optional)
- Variable power 30 – 100%
The Wafer series 1-4 is designed for tough conditions and is the market’s most compact UV system. The facilities are type approved by the Veterinary Institute and have capacities of 0 – 500 m3/hour.
The Wafer series has medium-pressure lamps. With medium-pressure lamps, microorganisms do not restore viability and colony-forming ability when treated with exactly the same UV dose as with low-pressure UV. This is because medium-pressure UV breaks down an enzyme called photolyase that is found in all living organisms and promotes photo editing of damaged DNA.
UV is a chemical-free method of disinfection that inactivates microorganisms, bacteria, pathogens and viruses, and saves the environment from the use of chemicals. The choice of dose setpoint determines which types are inactivated.
The systems are delivered with a 5-year warranty through the original service agreement.

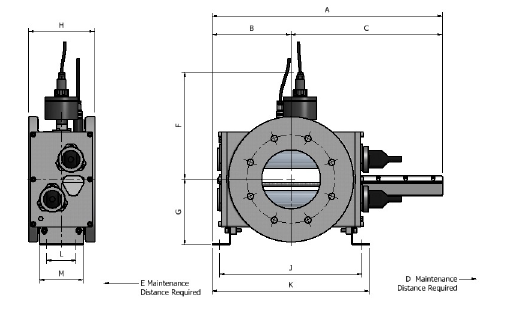

Specification
Do you need a different size?
We can customize products according to your needs. Enter the desired model and specifications, or describe what you are looking for when you request a quote.
