- All surfaces made of PEHD or acid resistant steel
- High capacity and extreme durability
- Optimum capacity with low pressure drop

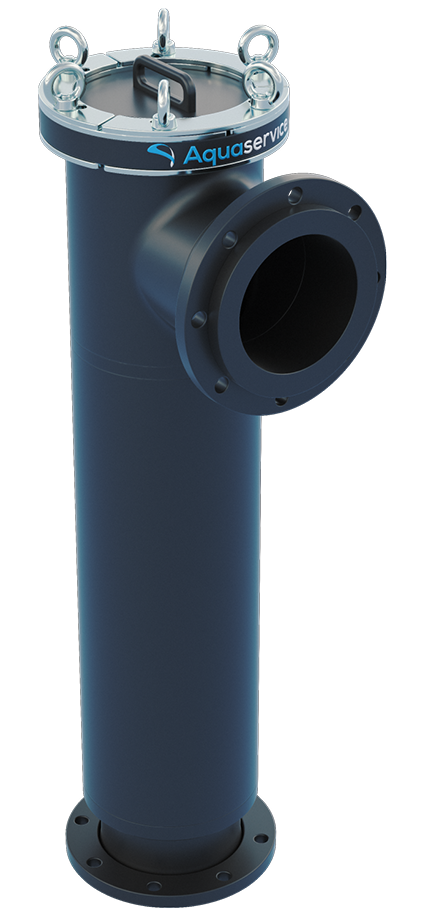

AquaCleanBox is a high capacity manual filter with extreme durability. Its usual area of application is for pre-filtration of water before pumping, but its potential use extends far beyond other industry applications.
All surfaces in contact with liquid are made of polyethylene (PEHD) or acid resistant steel. AquaCleanBox is designed to ensure optimal flow with the lowest possible pressure loss. Standard for all AquaCleanBoxes is an PEHD cylinder head secured with wing nuts for easy use without tools. On request, the product can be supplied with a transparent inspection lid. Flanges on cylinder heads are made of stainless steel with optional acid resistance. Flanges on inlets and outlets are made of galvanised steel with optional PP coating.

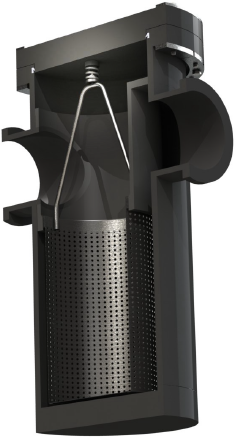

Standard for the AquaCleanBox is a cylinder filter made of acid resistant steel with a V-shaped profile for efficient filtering. The specially developed filter cylinders are designed for effective filtration with the lowest possible pressure loss. On request, the filter can be supplied in PEHD with an aperture of between 1.5 mm to 10 mm.
Specifications
| Application | Water* |
| Max. capacity at 500 µm | 1550 m3/t |
| Degree of filtration 1 | 1mm – 20mm |
| Max. temperature | 55°C |
| Max. working pressure (standard) | 5 bar** |
| Filter housing material | PEHD |
| Connections | Flange, PN10 |
| Manometer connection | Standard 1/2″ BSP |
| Basket strainer materia | l Acid resistant steel (standard), duplex or super duplex (optional) |
** Higher/lower pressure versions possible on request
Optional extras
- Transparent lid for inspection
- PP coated flanges
- Duplex or super duplex basket strainer
- Custom connections
Our pride lies in the quality of our products and our flexibility to give the customer what is needed. We go to great lengths to satisfy the needs of our customers and we are experts in offering customised solutions.
